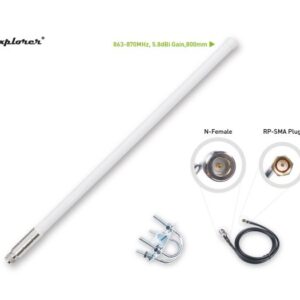

LoRa Fiberglass Antenna Kit; 863-870MHz; 5.8dBi; 800mm; RF Explorer RFELA-2/58X

(5.00)63 Reviews
In stock

Original price was: KSh10,005.00.Current price is: KSh10,000.00.

If you need to increase the range for your LoRa devices, then this outdoor LoRa Fiberglass antenna will be the ideal addition to your LoRa system.

  • Same-Day Delivery

Product details

If you need to increase the range for your LoRa devices, then this outdoor LoRa Fiberglass antenna will be the ideal addition to your LoRa system.





Features
  • Average gain: 5.8dBi
  • Frequency range: 863-870MHz
  • Length of 80cm
  • Robust enough to withstand the harsh outdoor environment
  • Can connect to the SenseCAP Outdoor Gateway and SenseCAP M1 Indoor Gateway
  • Includes hardware for mounting
  • Comes with a 1m cable

For some applications like in an urban environment or where large stretches of land have to be monitored the normal range of LoRa might not be enough. So If you need to increase the range for your LoRa devices, then this outdoor LoRa Fiberglass antenna will be the ideal addition to your LoRa system. It’s a robust solution to provide extra power and range for outdoor LoRa Base stations. The antenna has an average gain of 5.8 dBi, a length of 80cm, and a frequency range from 863-870MHz, and it comes with hardware for pole and wall mounting.

The Antenna has an N-J Double tooth connector, and it comes with an N-Female to RP-SMA plug cable so it can be easily connected to the SenseCAP Gateways.





Application

The antenna can be used in any environment where long-range LoRa connections are required.

  • Agriculture
  • Environmental Monitoring
  • Urban Monitoring

Antenna Specification
Frequency 863-870MHz
Impedance 50Ω
VSWR ≤2.5
Gain 5.8±1dBi
Max Efficiency >75%
Radiation Pattern Omni-directional
Connector N-Type Male
Material Fiberglass
Length 800±10mm
Operation Temperature -30℃~65℃

Efficiency and Gain

Cable Specification
Frequency Range 0-6000MHz
Impedance 50Ω
VSWR <2.0
Insertion loss <0.5dB @900 MHz
Insulation resistance >15 MΩ
Voltage breakdown >500V
External cable diameter 5mm
Connector Type N Female

Type RP-SMA Male

Conductor material Copper
Binder material Aluminum/PE Tape
Braid material Tinned copper wire
Operation temperature -40°C to 65°C

Test Unit in Laboratory

Radiation Pattern



VSWR

Part list
Antenna 1*
CFD200 cable 1mt 1*
Mounting Bracket 1*

ECCN/HTS
HSCODE 8517707090
USHSCODE 8517620010
UPC
